Electric Motor Overhauling Procedure: Complete Guide for Maintenance and Reliability

If you are a maintenance engineer, facility manager or industrial technician looking to maximize motor performance and minimize downtime, understanding the electric motor overhauling procedure is crucial. A well done motor overhaul not only gets the equipment back to its optimal condition but also extends its life, reduces energy losses and prevents unexpected breakdowns. Regular motor overhauling ensures critical components like bearings, windings and insulation are in top condition, ensuring industrial operations are reliable.

This guide will walk you through the step by step procedure of overhauling the electric motor, covering inspections, disassembly, cleaning, repair, reassembly and testing. It also highlights common challenges, safety considerations and best practices to ensure successful overhauling of electric motors for various industrial applications.

What is Motor Overhauling?

Motor overhauling is the process of inspecting, repairing and restoring an electric motor to its optimal working condition. Unlike routine maintenance which focuses on minor checks, lubrication and surface cleaning, motor overhauling involves complete disassembly, detailed inspection and assessment of all critical components. This ensures the motor can run reliably under industrial load conditions.

The key objectives of motor overhauling are:

• Detect worn or damaged parts before they lead to costly downtime or sudden failures.
• Replace or repair faulty components like bearings, windings, shafts and end shields.
• Get the motor to meet performance specifications, efficiency, output and industry standards.
• Ensure operational reliability, prevent unexpected breakdowns and improve overall safety.

Industries like oil & gas, marine, manufacturing, utilities and construction rely heavily on overhauled motors. By doing a detailed electric motor overhaul, maintenance teams can extend equipment life, improve energy efficiency and maintain operational safety. Regular overhauling of electric motor components also helps in maintaining ISO compliance and extending the life of industrial motors.

Step by Step Electric Motor Overhauling Procedure

1. Initial Inspection and Diagnosis

The first step in any electric motor overhauling procedure is a thorough inspection to identify signs of wear, electrical issues or mechanical faults. Technicians examine every component, combining visual inspection with advanced testing methods to ensure nothing is missed.

Tasks during inspection: Visual inspection: Check for corrosion, cracks, burnt windings, overheating marks and mechanical damage.

• Electrical testing: Perform insulation resistance tests, continuity checks and voltage measurements to verify electrical integrity.
• Bearing inspection: Check for wear, lubrication issues, misalignment and potential vibration sources.

By doing this step first, you ensure the subsequent overhaul is precise, targeted and efficient. It prevents unnecessary replacements and guarantees the motor will run after service.

2. Disassembly of the Motor

Disassembly must be done carefully to prevent damage to sensitive components. Proper labeling, organized storage and adherence to safety standards is crucial during this stage.

Key points:

• Separate rotor, stator and end shields with precision to prevent mechanical damage.
• Keep track of all fasteners, bearings and small components so reassembly is easy.
• Protect components from dust, moisture or contaminants during storage.

Disassembly is the foundation of a successful motor overhauling process, allowing for detailed inspection and accurate repair or replacement of components.

3. Cleaning and Component Preparation

Once disassembled, all motor components are thoroughly cleaned to remove grease, dirt, debris and old lubricants. Insulation integrity must be maintained during cleaning to prevent electrical failures.

Common cleaning tasks:

• Clean stator and rotor windings with approved solvents or insulation-safe cleaning agents.
• Remove dirt and debris from bearings, shafts and motor housings.
• Ensure all surfaces are dry, contaminant-free and ready for repair or assembly.

Cleaning prepares components for precise repairs, so the motor will run efficiently after reassembly.

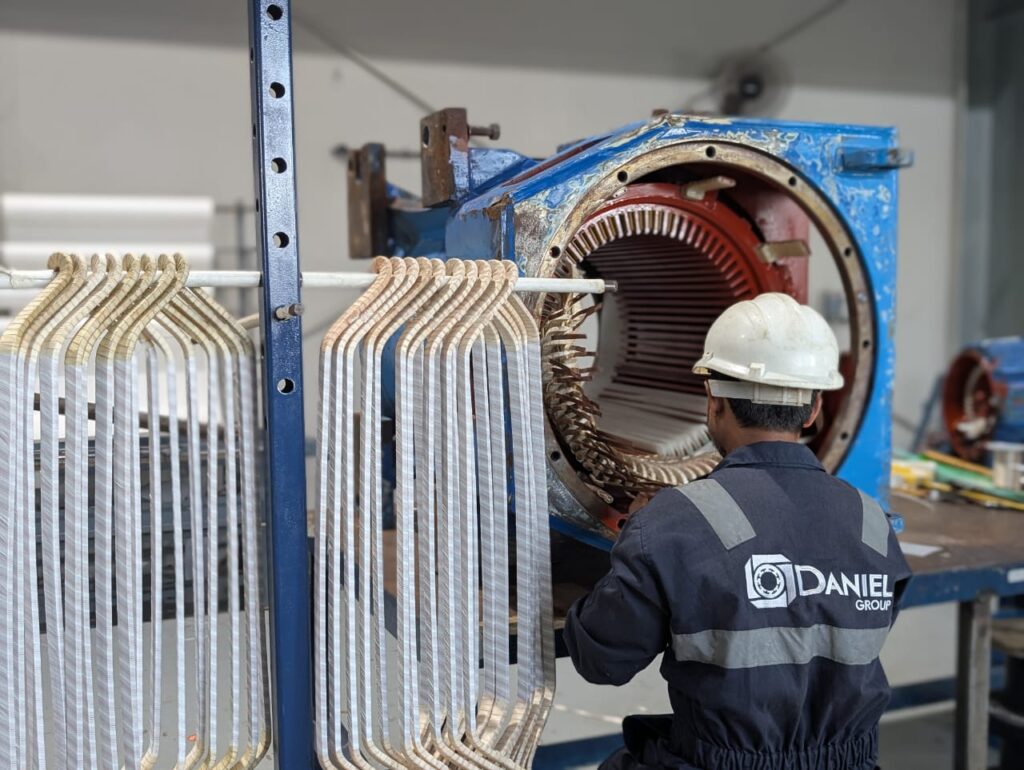

4. Repair, Rewinding and Replacement

In this step, worn or damaged components are repaired or replaced to get the motor back to its original performance standards.

Key areas:

• Rewind motor coils to original electrical and mechanical specifications.
• Replace bearings with precision-fit parts to ensure smooth operation and reduce vibration.
• Repair or replace shafts, end shields and housings as necessary for structural and mechanical integrity.

This stage is critical for a successful motor overhauling outcome. Accurate repair and attention to detail ensures the motor will run under operational loads.After repair, the motor is reassembled carefully to ensure correct alignment and mechanical integrity. Rotor and stator alignment, shaft positioning and secure assembly of all components is critical for reliable performance.

Key points during reassembly:

• Align rotor and stator to avoid vibration, noise and premature wear.
• Lubricate bearings according to manufacturer specifications for maximum life.
• Check all clearances and tighten fasteners to recommended torque.

Proper reassembly ensures smooth motor operation and reduces mechanical failures during service.

6. Testing and Quality Assurance

The final stage of the electric motor overhaul is testing to ensure the motor meets operational and safety standards.

Common tests:

• Insulation resistance testing to verify electrical safety and integrity.
• Load testing to verify performance under operational conditions.
• Vibration and noise measurement to detect misalignment, imbalance or mechanical defects.

Quality assurance ensures the motor is ready for long term service and industrial operation.

Safety Considerations During Motor Overhauling

Safety is an important part of the electric motor overhauling process. Follow safety protocols to protect personnel and equipment.

Key safety practices:

• Wear PPE, gloves, safety goggles and protective footwear.
• Ensure the motor is fully disconnected from power sources before disassembly.
• Handle high voltage components carefully and follow safe working distances.
• Comply with industry standards (IEC, IEEE) for testing, handling and repair.

Following these safety measures ensures a safe, efficient and reliable motor overhauling process. LSI keywords: motor maintenance safety, electrical safety in overhauling, workshop safety protocols.

Common Challenges in Electric Motor Overhauling

• Worn or damaged insulation causing electrical faults and reduced motor efficiency.
• Misaligned rotor or shaft causing vibration, noise and potential premature wear.
• Bearing failures due to contamination, improper lubrication or wear.
• Mechanical damage to housing or end shields that may go unnoticed during inspection.
• Rotor or stator winding issues such as burnt or loose windings affecting performance.
• Improper reassembly or alignment causing imbalance and operational inefficiencies.
• Contamination during cleaning or repair causing short circuits or insulation breakdown.
• Undetected internal faults that may require repeat maintenance or downtime.

Why Choose Daniel Group for Motor Overhauling in the UAE

Daniel Group has been providing motor overhauling services in the UAE for over 30 years. With experience in high-voltage motor rewinding, pump and gearbox repair and comprehensive industrial maintenance, they offer precise and reliable solutions to minimize downtime. Serving clients in oil & gas, marine, manufacturing and utilities sectors, Daniel Group ensures every electric motor overhaul is done with technical expertise, adherence to industry standards and focus on long term operational reliability.

Choosing Daniel Group means partnering with a team that treats every motor overhaul as an extension of the client’s operations.

Why Daniel Group:

• In-house capabilities to ensure all work is done under expert supervision
• Hands-on technical expertise for high-voltage motors, dynamic balancing and industrial machinery
• Proven record of fast turnaround without compromising quality
• Compliance with international standards and rigorous testing protocols

Motor Overhauling Made Easy

A well executed electric motor overhauling procedure is crucial for industrial reliability, minimizing downtime and extending motor life. By following detailed steps – from inspection and disassembly to repair, reassembly and rigorous testing – maintenance teams can ensure optimal performance for critical operations.

For organizations in the UAE looking for professional and reliable motor overhauling services, Daniel Group has the technical expertise, in-house capabilities and proven track record to deliver precise, efficient and safe industrial solutions. Contact Daniel Group today to schedule your motor overhauling service and get your critical operations running smoothly with minimal downtime.
